Main drive locking clutch
Series 055

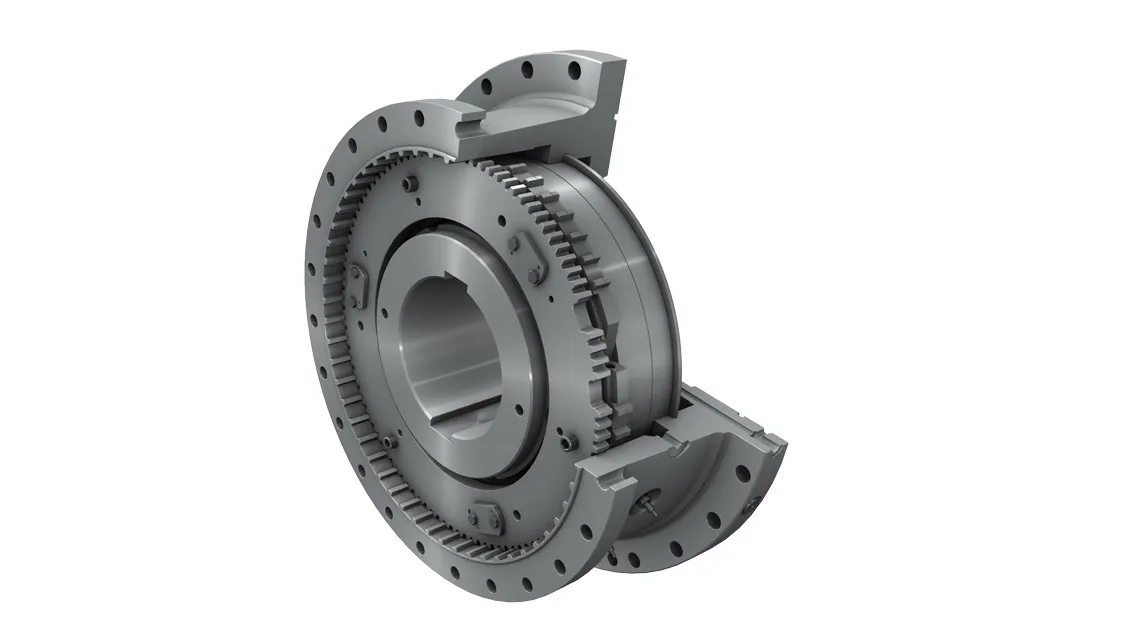

According to DIN EN ISO 16092, the relevant safety standards for press engineering, a mechanical restraining device must be present in mechanical presses for repair work and work between the two halves of the tool. The Ortlinghaus linear motion lock from the series 055 is an approved restraining device according to the German employers' liability insurance association. The linear motion lock is used to positively lock a shaft to the fixed housing of a clutch so that the shaft cannot rotate. This is particularly desirable for presses to ensure that the press ram will not move in an uncontrolled or unintended manner during servicing or maintenance work between the two halves of the die.
The Ortlinghaus ram locking mechanism enables a variable locking of the press ram in any position, with a short actuating time. The linear motion lock is matched to and integrated into the machine's drivetrain. It is engaged or disengaged hydraulically. The state of the ram locking mechanism actuated by oil pressure, either locked or unlocked, is detected using inductive travel sensors and transmitted to the machine control unit.
Specifications:
- Torque: 11,000 - 100,000 Nm
- Outside diameter: 480 - 900 mm
- Bore diameter: 120 - 260 mm
- Length: 195 - 325 mm
