Gearboxes

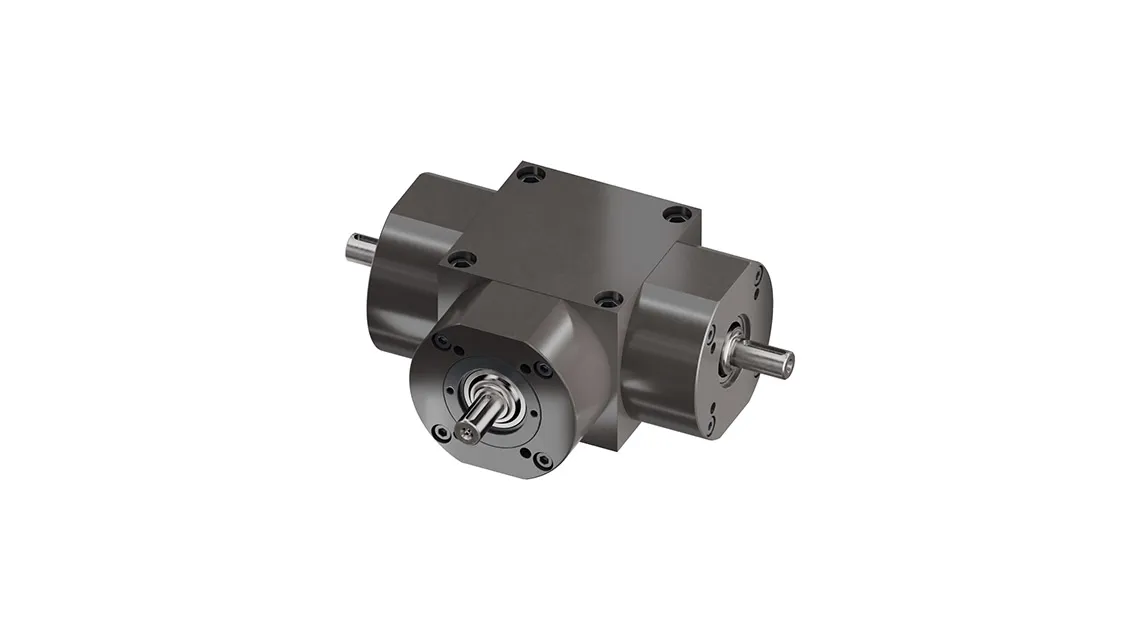

Bevel Gearboxes from ZIMM
We provide different series of Bevel Gearboxes from our partner ZIMM:
- KSZ-H | L-Series
- KSZ-H | T-Series
- KSZ-2
- KST
Product specification KSZ-H:
The properties of KSZ-H series include high precision, power density and smooth run as well as high-quality two-component varnish offering an efficient corrosion protection. It´s possible to carry out the screw connection not only by means of internal thread as usual but also from the top owing to special drilling.
- High torque transmission in a small size
- Pre-loaded taper roller bearings
- Sealing by means of shaft seals and O-rings
- Max. 40% duty factor at 1500 min-1
- Oil change required only on heavy duty applications
- All installation dimensions symmetrical
- Compatible with the ZIMM modular system | actuators & screw jacks
Product specification KSZ-2:
Fitting a stub shaft allows the KSZ-2 to be used as a conventional right-angle gearbox.
- High torque transmission
- Spiral toothing ensures low running noise
- Compatible with GSZ screw jacks
Product specification KST:
The properties of the KST bevel gearboxes include precision, power density and smooth running.
- High torque transmission
- Pre-loaded taper roller bearings
- Sealing by means of shaft seals and O-rings
Other products from ZIMM:
Catalogue from ZIMM:
Contact EIE Maskin for more information about our products and ordering:
