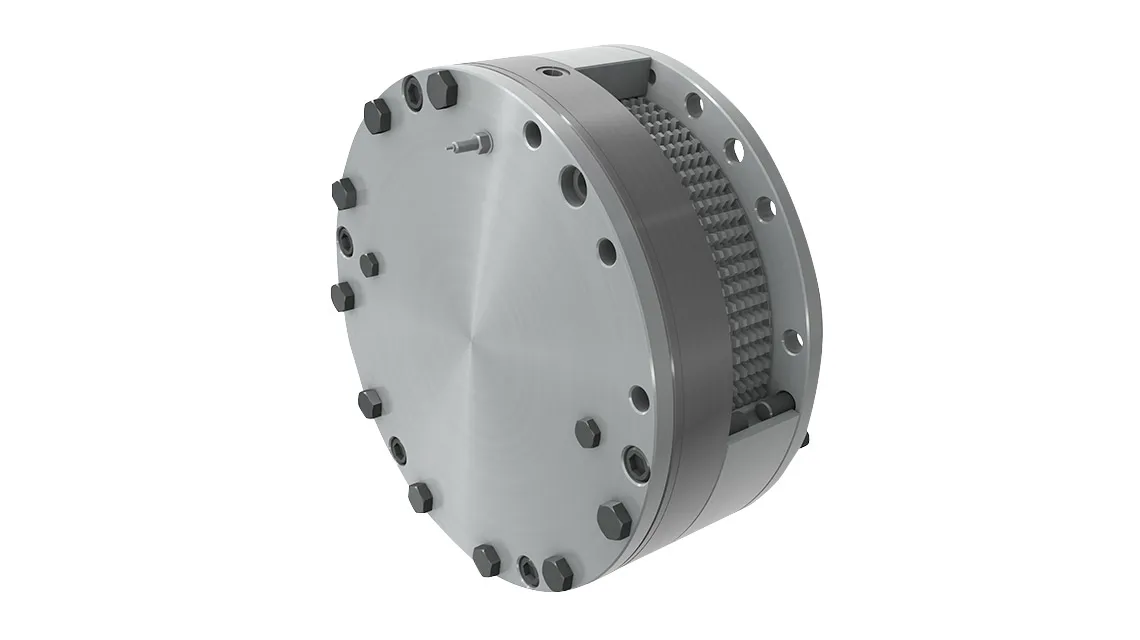

Hydraulic multi-plate brake
Series 022
The 022 series is one of the most successful products from our partner Ortlinghaus. The advantage of these wet-running, hydraulically released and spring-applied multi-plate brakes is the high torques they achieve in compact dimensions.
Specifications:
- Torque: 50 - 150,000 Nm
- Rotations per minute: 6,570 - 450 min-1
- Outside diameter: 83 - 910 mm
- Bore diameter: 18 - 350 mm
- Length: 59 - 360 mm
- Hydraulically actuated brakes are also available as a special version.
- The spring-loaded brakes are safety brakes, which automatically work in cases of pressure failure.
- The brakes can achieve full torque even when there is no pressure.
