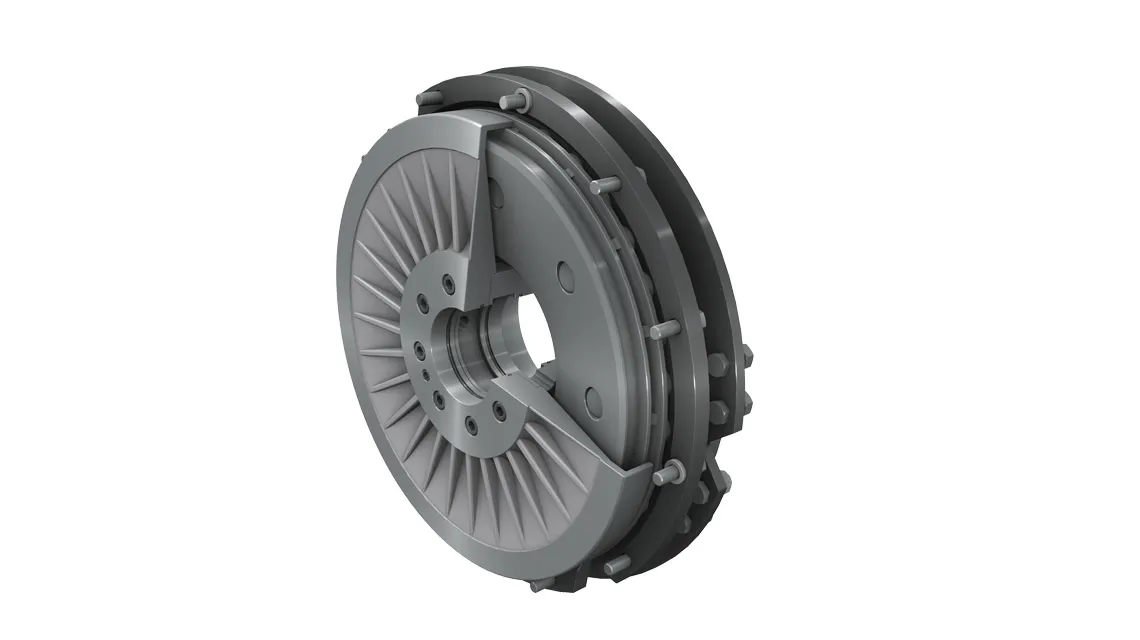

Pneumatic clutch-brake unit

Series 406/420

The pneumatically actuated clutch-brake units from the tried-and-tested series 400, 406, and 420 have been further developed to meet the increasing performance and safety requirements in press engineering.

The 406 series offers optimally high clutch and brake torques in small dimensions – high-performance and compact design for following areas:

• Twelve-point attachment of the friction plates or two-point attachment with straps of equal or different lengths provides flexibility for various applications.
• Friction element selection depending on shape and material to obtain the most effective service life with quiet switching under all operating conditions. The friction pad version is recommended for machines with high dynamic loading or load reversals under continuous operation.
• Attachment to the shaft or crankshaft with the aid of either keys and lateral attachment or a clamping set – these being fitted on the clutch side for the 420 series and on the brake side for the 406 series.



Specifications:

• Torque: up to 25,000 Nm
• Rotations per minute: 500 - 3,200 min^-1
• Outside diameter: 166 - 1,285 mm
• Bore diameter: 21 - 270 mm
• Length: 48 - 662 mm



Applications:

• C-frame presses
• Main Drive
