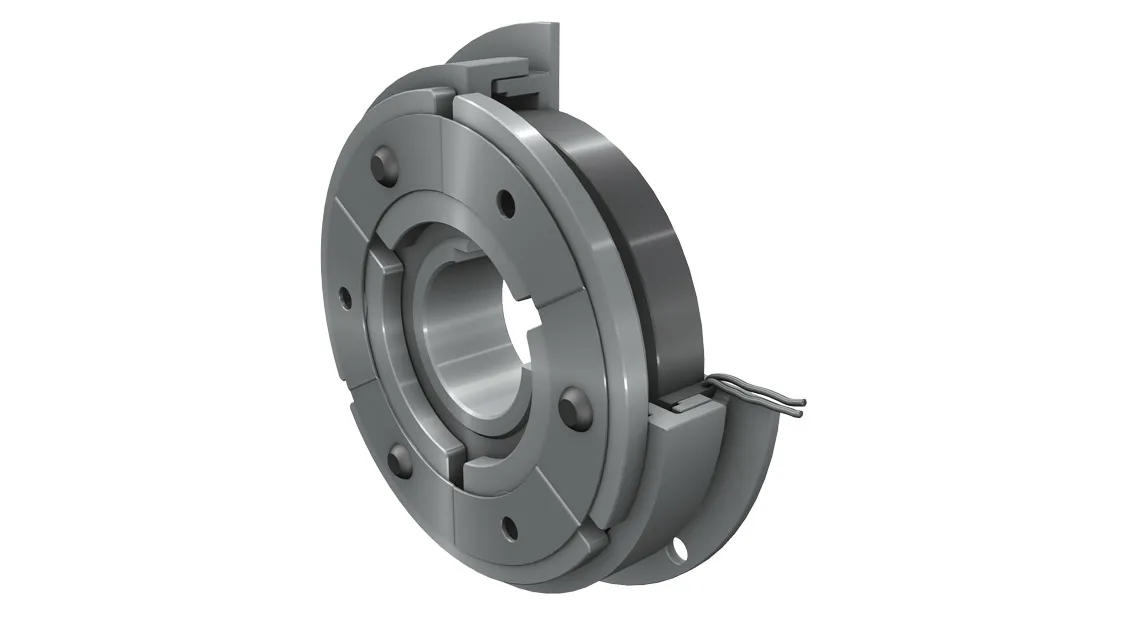

Electromagnetic clutch
Series 008
Magnetically actuated, rapid switching dry-running clutches and brakes from our supplier Ortlinghaus, especially designed for machines and many other devices. They permit space saving, adaptable to different design situations. When disengaged, these clutches and brakes are free of residual torque. They can be supplied either with magnet bodies in a mounted version with bearings or flange fixings to the machine frame.
Specifications:
- Torque: 1.7 - 480 Nm
- Outside diameter: 68 - 266.5 mm
- Bore diameter: 15 - 80 mm
- Length: 40 - 90 mm
