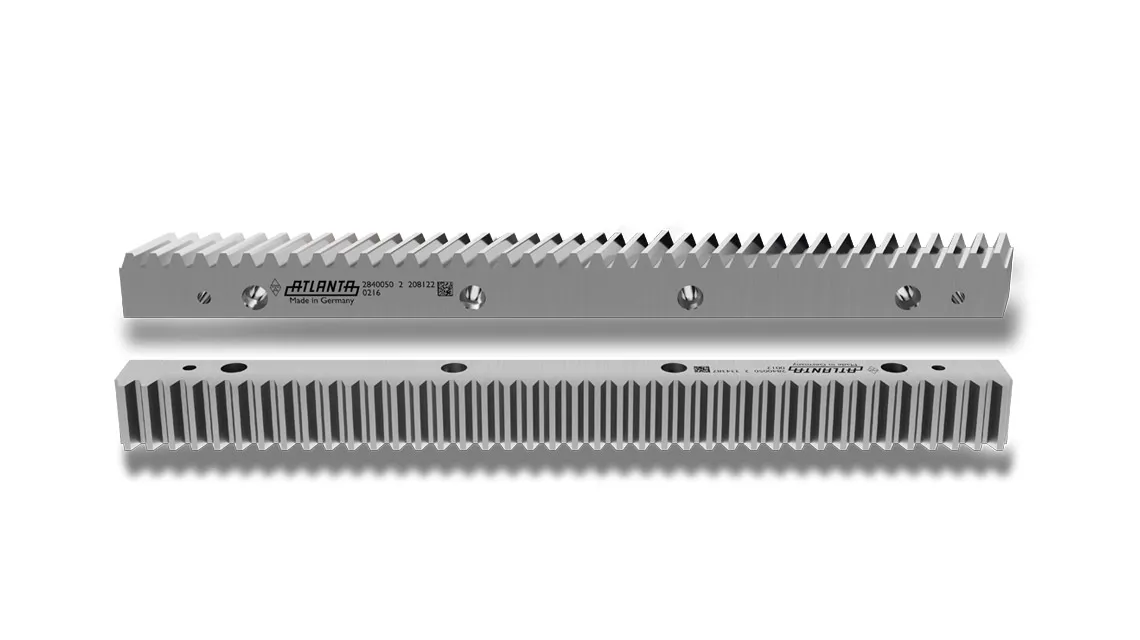

HPR – high quality racks
High Precision Racks for industries
HPR Q6 - Quality Class 6 | Technical Data:
- Case hardening steel according ATLANTA-Standard (29 xx xx0)
- Heat-treatable steel according ATLANTA-Standard (29 xx xx5)
- Teeth hardened with the ATLANTA High-Performance
hardening process and ground - Ground on all sides after hardening
- Total pitch error GTf 1000 ≤ 0,036mm
- 19°31'42" helical and straight tooth system
- Module 1,5 to 12
- Length up to 2000mm
- Max. feed force per pinion contact up to 409,0 kN
Download PDF | HPR Q6:
HPR Q7 - Quality Class 7 | Technical Data:
- Heat-treatable steel according ATLANTA-Standard
- Teeth hardened with the ATLANTA High-Performance
hardening process and ground - Ground on all sides after hardening
- Total pitch error GTf/1000 ≤ 0,052mm
- 19°31'42" helical and straight tooth system
- Module 2 to 10
- Length 2000 mm
- Max. feed force per pinion contact up to 287,0 kN
Download PDF | HPR Q7:
Contact EIE Maskin for more information about our products and ordering:
