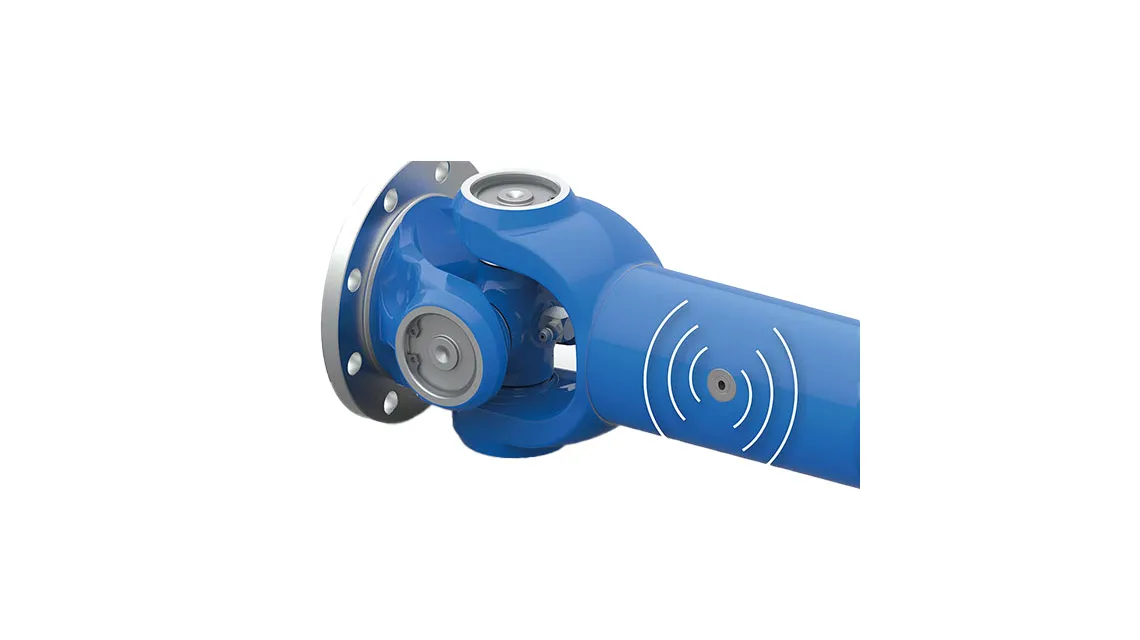

EST Sensory Drive Shaft

Application and benefits for EST Sensory Drive Shaft:

• Process monitoring and optimization
• Predictive maintenance
• Process control through torque control
• Determination of load collectives

Key Features:

• A great variety of measuring data in one sensor
• Robust sensor technology protected in the inner part of the drive shaft
• Reading out and logging of sensor data with up to 500 Hz
• Optimized for wireless use
• With integrated speed and acceleration sensor
• Different wireless energy options (battery, induction)
• Compatible with Gateway coreGATE for easy connection with control or measuring computer
• Integrated intelligence on board: by detecting and saving events plenty of applications are feasible

Measurands Sensor Technology:

• Torque: standard measurement range 25 Nm – 6.000 Nm*
• Axle force: standard measurement range 50 N – 125.000 N*
• Lateral force | bending: lateral forces up to 100 kN*
• Acceleration: 3 axis accelerometer up to 30 g
• Rotation speed: Sensor up to 2.500 rpm
• Temperature: integrated temperature monitoring
• Monitoring: storage of signal sequences
• Interpretation: Real-time analysis of the sensor data

* measurement range other than indicated on request
